AD 614

Produsent: Heretic Sound System

Pris: 99000


Heretic AD614

High sensibility

Forget “hard to drive” speakers. Heretic loudspeakers are engineered to work with all amplifiers, including highquality, low power, “tube” amplifiers. Sensitivity rating of 97 dB @ 2,83V and non-inductive tuning means that most of the time, your Heretics will be perfectly happy with less than 1 watt of power.

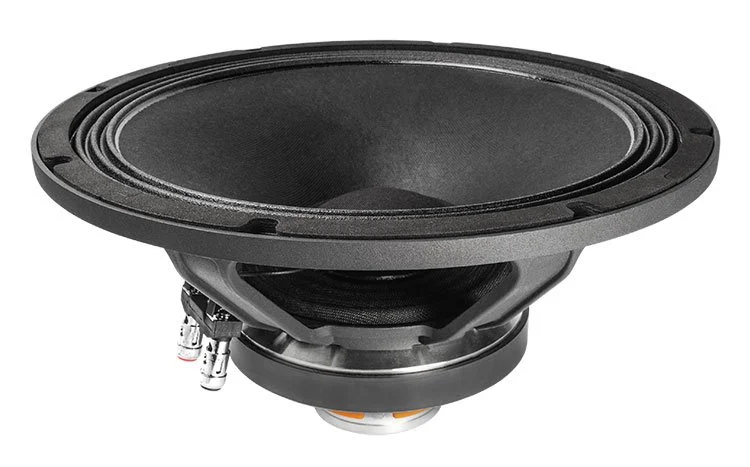

Heretic 303 co-axial transducer

Point Source Co-axial Transducers

All sounds originates from a single point in space. No transducers all over the place, yielding fuzzy, phasy music reproduction. Excellent soundstage, precise location of intruments and coherency.

Obsolescence is Obsolete : 10 years warranty

No software updates, no drop outs, no electronics to fail, no tracking software or DSPs… Nothing can be simpler : hook your amplifier, play record, that’s it and backed by a 10 years warranty.

FSC Birch Plywood construction

Heretics are built from premium, no void, 12 ply birch plywood, which preserve the natural tone of instruments. Unlike energy-robbing MDF, Heretics are renowned for musicality, tone, punch and lively sound.

Easy Placement

Heretics are designed to work with your room and not against it. There is no need to place them in the middle of the room : place them close to the front wall and your room will be filled with true, lively and musical sound. The unique ductless design does not produce the dreaded one-note-boom sound of conventional speakers.

Most loudspeakers have a circuit called “Baffle Step Compensation filter” to compensate the acoustic effect created by narrow enclosures, that boosts low frequencies. Heretic speakers do not have this circuit and rely on the “broad shoulders” of the enclosure, acting as a launch pad for low frequencies. Therefore, it is advisable to place Heretic speakers against the wall and benefit from the reinforcement offered by your natural room acoustics.

Serial Network

One of the secrets of Heretic’s musicality is found in the premium, exotic serial network topology using premium parts such as high gauge Air Core Solen inductiors, Mundorf Capacitors and non-inductive high power, paired resistors on Mil Spec printed circuit board.


No formaldehyde, no COV. All Heretics are finished with water based acrylic or food grade 100% vegan linseed oil and pure Beeswax.

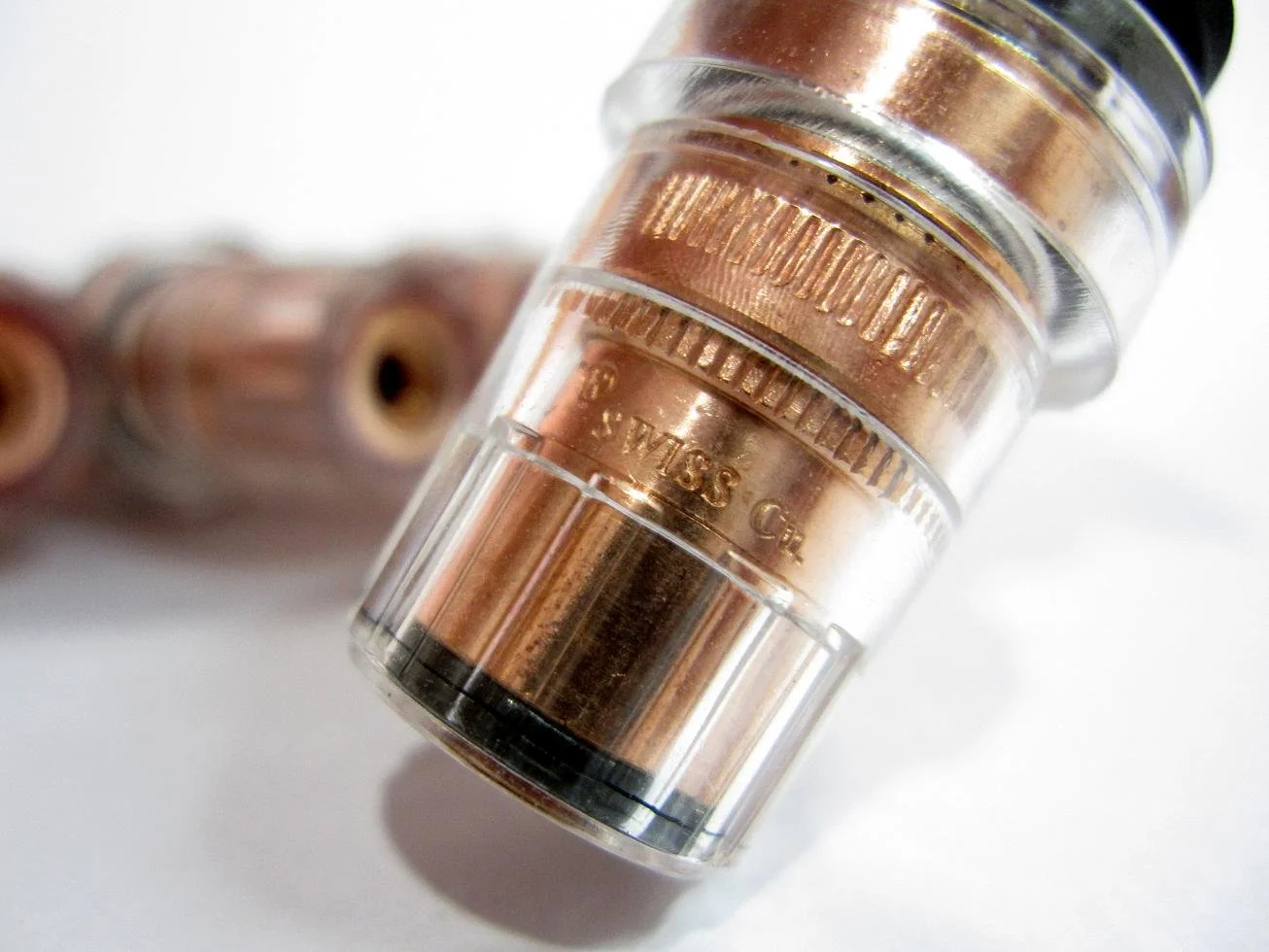

High quality Copper binding posts standard

Heretic Swiss copper binding post

AD614, known as the utility portable monitor is the best ratio in terms of relatively low volume, while preserving the Heretic Identity: All Heretics are built from 12 mm canadian ultra premium birch ply. Why? Because of tone. Plywood has a tone that isn’t match by any other material. Tone comes from rigidity, lightness and compliance. But not too much! How much is perfect is our trade secret, and we would love you to find out!


The Heretic A614 Speakers: A perfect blend of new and legacy

By Jeff Dorgay

Warning, these speakers tend to keep you cemented in your listening chair. The Heretics are “album side” speakers if that makes sense.

Spinning Nightmares on Wax’s In A Space Outta Sound, the dub heavy, trippy vibe is intoxicating. Next up, Propellerheads Decksanddrumsandrockandroll. Again, the whole album goes by without the slightest urge to make a playlist. The bass line in “Oh Yeah?” is so much fun. The 12” coaxial driver combined with the ported cabinet adds up to a very organic, tuneful (yet not overdamped) bottom end.

If you’ve looked at Heretic’s website ( you’ll notice the famous shot of EMI studios, with the Beatles in the control room. They are listening to what looks like the larger Heretic A612, but these are actually Altec drivers in the cabinets. Robert Gaboury, the man behind the Heretic has taken this 12” coax and the Altec cabinet design and brought it into the modern age, to produce a speaker that is really a pleasure to listen to.

Powered by the Lab12 Mighty amplifier, which only produces 10 watts per channel, these speakers sporting a 97db/1-Watt sensitivity rating barely make the cool, circular VU meters move from rest. Seriously, how often do most of you listen to music at a 97db level? It’s unbelievable that this pair of speakers, combined with a $2,400 power amplifier can create such an expansive and immersive musical experience. But it does. Pricing is TBA right now, but they will be under $8k/pair for the smaller 614s, reviewed here.

Quick, adjective barrage

All of those audiophile cliches we’ve heard a million times over truly do apply to the Heretic A614s, but they are one of those rare speakers that provide instant fun. If you’re a persnickity audiophile, you’ll find things to nitpick, but then you will no matter what you’re listening to. These won’t be the speakers for you.

You can look at these speakers one of two ways – you can be fussy and point out the small things they don’t do (as you would with every single other speaker made) or you can sink into the vibe and just enjoy them. To give you a reference point of where I’m coming from (because saying a speaker is “fun,” really doesn’t give you much to go on…) my short list of fun, under $10k/pair speakers are in no order, The Vandersteen 1C, The JBL L-100 Century Classic, The Magnepan SMG, A nice used pair of MartinLogan CLS’s, The Harbeth C7s, The Zu Dirty Weekends.

Speakers that are not necessarily the last word in audiophile speakers, but ones that you can sit around all evening listening to music with, have a great time, and not have to engage the audiophile part of your consciousness that feels the need to dissect everything.

Quick setup

Thanks to their relatively light weight – about 40 pounds each, with a profile of 19” wide, 15” deep, and about 26” tall, you can move the Heretics around and set them up easily by yourself.
Having used these in small (10 x 13 foot), medium (11 x 18 foot) and large (15 x 26 foot) the Heretics deliver great results anywhere, though you will get a little bit more bass loading in an extremely small room, that may or may not work to your advantage.

While these speakers come with feet attached for use on the floor, I had the best results getting them about 13” off the floor. Custom stands are on the way, but for now a pair of heavy Sound Anchors stands with 1.25 thick butcher block boards work splendidly. A little blu tack between the boards and the stands really helps too. Getting that tweeter up a little higher than ground level makes for a lot less mid-bass bloom/roundness and gives up nothing on the bottom end. This also helps the Heretics to create a larger soundstage, eliminating a lot of reflection right from the floor.

Because the originals have that EMI heritage, the push for some Beatle’s was just too much to resist, and considering it’s that time of the year here in America again, Revolvers’ “Taxman” was perfect. These speakers do such a great job at holding the bass line rock solid, the drums in place and a clear view of all the harmonies – it’s incredible. And incredibly enjoyable. Whether you prefer the stereo or mono Beatles, this is a treat. Switching it up for Cheap Trick’s “Taxman, Mr. Thief” is equally rewarding. And this is not an awesome recording by any stretch. Yet the slightly round bottom end of these speakers gives a little bit of help to the average recordings in your collection. Again, that fun thing.

For those of you that haven’t been following my ongoing narrative, one of my biggest hot buttons is coherence. Thanks to the coaxial tweeter, these speakers sound like a big single driver speaker with extension. The crossovers are well designed, as the transition from woofer to tweeter is as good as it gets – seamless and free of grain. Regardless of what kind of music you enjoy, these speakers do a fantastic job rendering it.

Vocals are transcendent with the Heretics, both in terms of tonality and the way they can decode layered harmonies. The Heretics are highly natural in their presentation, and again thanks to the high sensitivity, nothing is ever working hard to produce sound – resulting in low distortion and fatigue. These are speakers you can listen to all day without becoming the least bit tired.


Don’t let the sensitivity rating fool you, even though these speakers don’t need a tremendous amount of power to play really loud, it’s a quality thing. A few obvious choices (the Cary 805 SET monos, the Line Magnetic 815) didn’t provide killer results, yet the 4 watt per channel Finale is out of this world good. As mentioned at the beginning of this review, Lab12s Mighty (10 watts per channel) is also fantastic. Our Pass First Watt SIT-3 was also a stunner. This amplifier is very speaker sensitive, but in this case, the match is perfection. This single ended solid-state amplifier delivers about 92% of the texture and depth of the best tube combinations, with a bigger image, and a lot more slam on the low end. So, again – big fun with these speakers. And there’s still about five or six amplifiers to try.

Perhaps we were cheating a bit at first, using the Pass XS Pre, XS Phono and dCS Vivaldi One with Vivaldi Clock, but even when bringing the associated components downstream in keeping with you’d probably expect to be in a system with a pair of speakers in this price range, the results are still excellent. The only thing tried that was less than awesome was our vintage Marantz 2270. This just sounded flat.

The rest of the story

Looking at the Heretic site, you’ll see there are several other finishes available, and you can order the speakers with or without grilles. If you have munchkins or pets, seriously consider the grilles. Our review pair came in the natural finish.

Gaboury says that the cabinets are made from 12mm Canadian ultra-premium birch plywood. The website says, “Because of tone. Tone comes from rigidity, lightness, and compliance, but not too much.” Rather than go on and on, if there is any way you can give these speakers a listen, if you share some of my listening priorities, I think you will really enjoy the Heretics. Should you have a larger room, or need more bass extension, they also make the A612, which is the same driver in a cabinet with more volume.

Sensitivity remains the same, but there is an additional half octave of bass extension. When Mr. Gaboury catches up with orders, he’s promising to send us a pair. For now, provisionally, I am purchasing the review pair, but I may hold the checkbook close to the vest until I hear the bigger model. I’ve got the room. Either way, these speakers have provided some of the most fun I’ve had in a long time just hanging out and listening to music for its own sake. You’ll only need one or two of your favorite tracks to decide if they are the droids you want.

For now, highly recommended, and #toneaudioapproved.

“The Healing Heretics: Heretic A612 High Sensitivity Loudspeakers soothe these bleeding ears with their warm and intimate sound”

—Juan C. Ayllon, Positive-Feedback

“the Heretics capture all of the magic of a classic Altec design – powerful, direct and exciting–with more extension at the frequency extremes”

—Marc Phillips, Part Time Audiophile

“Without a doubt, this system delivered the most fun I'd had during my first two days at the show”

—Jason Victor Serinus, STEREOPHILE

“I was impressed by the loudspeaker’s focused and detailed sound, not necessarily expected from a product so retro in appearance”

— Andrew Quint, The Absolute Sound


Heretic AD614

Designed and built in Canada by Heretic Loudspeakers Co. High sensitivity loudspeaker.


  • 2 way, ductless, high efficiency 2 way coaxial monitor

  • Serial Linkwitz-Riley second order network

  • FSC 12 ply, birch plywood construction

  • Mil spec circuit board

  • 10 Years warranty.


  • 303 Heretic coaxial transducer

  • Low frequencies : 12 in. high power, low frequency transducer

  • High frequencies : 1 in. coaxial compression driver

  • Horn profile : Short exponential.


  • Frequency response : 45 Hz to 22 000 Hz

  • typical room response 35 Hz to 20 000 Hz

  • Recommended amplifier power : 3 to 300 watts, unclipped

  • Impedance : 8 Ω

  • Sensitivity : 97 dB @ 2.83 V @ 1M.


  • Corner frequency : 1,7 kHz

  • Type : 2nd order Serial type Linkwitz-Riley, Air core inductors, Mundorf© Capacitors.


  • Dimensions : 25,5 in. high, 18,75 in. wide, 14.5 in. depth ; 65 cm high, 48 cm wide, 37 cm deep

  • Weight : 43 lbs / 20 kg

  • Volume : 3 cubic feet, 85 litres

  • Tuning : Ductless port

  • Construction : FSC 12 ply, Birch plywood

  • Connection : CE compliant isolated copper binding posts. Neutrik SpeakOn available

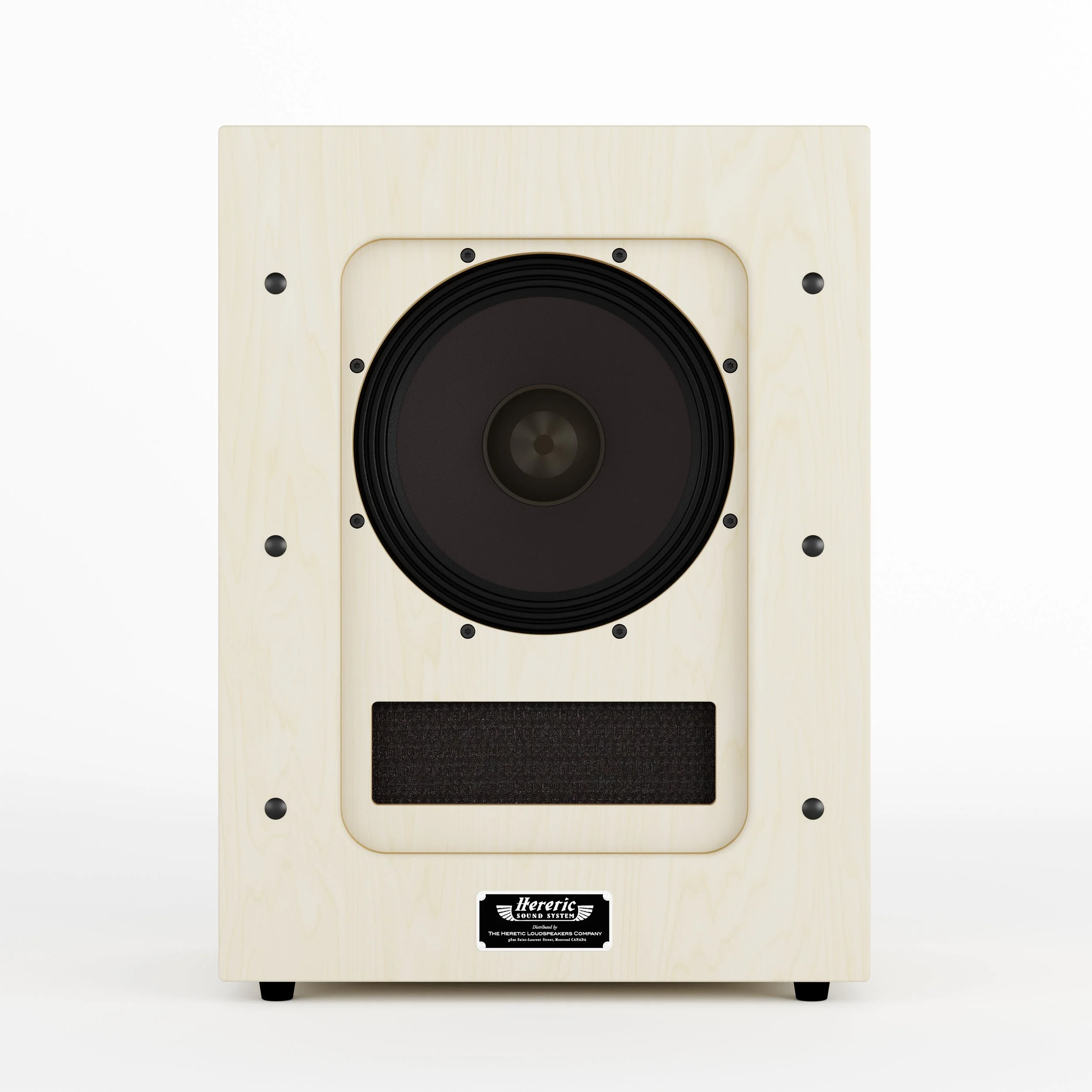

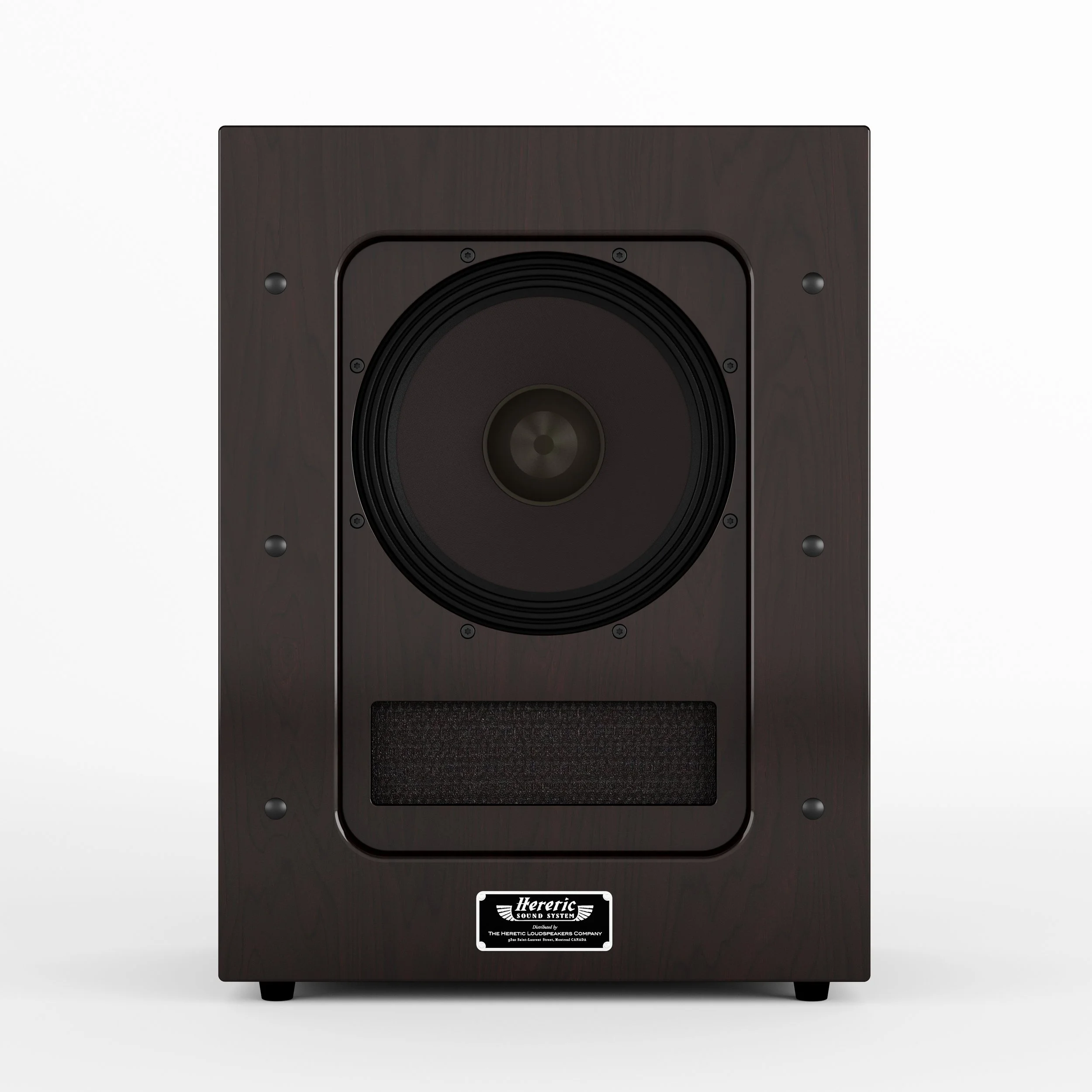

Available finishes

  • Stock colors : Water Based 100% acrylic Black ; Semi transparent linseed oil / bees wax : Clear, White wax (or any Allbäck color)

Suggested Retail Price

  • Starting at $7 290 USD / pair
