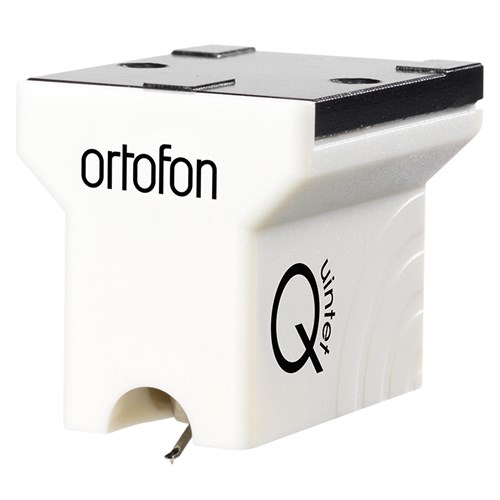

MC Quintet Mono
A True Mono from Ortofon
It features Nude Elliptical r/R 8/18µm stylus that is a good solution for playing mono microgroove vinyl records. The Quintet Mono will track perfectly through even worn and damaged records and ensure the surface noise control.
Quintet Mono uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.
MC Quintet Mono is for playing mono microgroove vinyl records.
The Quintet Story
Nothing demonstrates Ortofon's long-standing resilience more than its commitment to the refinement of analogue sound quality and its continued development of new cartridge models. Since 1948 Ortofon has introduced about 100 different Moving Coil models. We believe the cartridges in this new series are more than worthy successors to the long line of models that has made Ortofon the global leader in the manufacture and supply of phono cartridges.
The MC Quintet Series is a direct result of our continued research and innovation
The MC Quintet Series is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration:
- A special ABS (Acrylonitrile/Butadiene/Styrene) thermoplastic material is used for manufacturing of the body. This light-weight, impact resistant material is very suitable for injection-moulding and provides a very durable scratch resistant surface.
- Neodymium magnets are implemented to achieve an optimal output.
- Low internal impedance makes the cartridge less sensitive to load and therefore ensures compatibility with the widest range of preamps and transformers.
It is our aim to bring our customers many hours of new and surprising experiences in listening to their precious vinyl collection.
Each of the five Quintet Series cartridges has its own individual sonic expression, and all five models together represent the ensemble of five classic variations:
- MC Quintet Mono is a true mono cartridge for playing mono microgroove vinyl records
- MC Quintet Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth
- MC Quintet Blue adds more dynamics and resolution, sounds more open and reproduces more details
- MC Quintet Bronze adds even more details and resolution but in a very evenhanded way that pays respect to all elements
- MC Quintet Black is the best of everything, true to the groove with resolution and accurate insight into each recording
Ease of use
Top-mounting of the Quintet cartridges is easy and secure using the screws supplied. The aluminuim frame has threaded mounting holes and is fitted easily with the 5mm or 7mm screws depending on the thickness of the headshell.
The Quintet series’ right angles, straight lines, stylus visibility and ample distance between the record surface and the cartridge’s bottom will make it easy to mount and align the cartridge and tonearm correctly. The Quintet Series gives excellent results with most common tonearms.
Output voltage at 1 kHz 5 cm/sec - 0.3 mV
Frequency range at -3 dB - 20-25.000 Hz
Frequency response 20 Hz - 20 kHz - +/-2.0 dB
Tracking ability at 315 Hz at recommended tracking force *) - 70 μm
Compliance, dynamic, lateral - 15 μm/mN
Stylus type - Nude Elliptical
Stylus tip radius - r/R 8/18 μm
Tracking force range - 2.1-2.5 g (21-25 mN)
Tracking force recommended - 2.3 g (23 mN)
Tracking angle - 20º
*) Typical value
Internal impedance, DC resistance - 5 Ohm
Recommended load impedance - >20 Ohm
Cartridge body material - ABS/Aluminium
Coil wire material - Pure 4-nines silver/Ag
Cartridge colour - White
Cartridge weight - 9 g
